Bioclimatic and fully secure CURVED
transparent roll down shutters

Secure elegance

Our Crystal Vision CURVED® transparent roll down shutters have been designed to offer you living spaces that combine aesthetics, security and comfort. They are of the highest quality, right down to the smallest of details. A unique product, a spectacular innovation..

Optimal security with the latest Crystal Vision technology

The only roll down shutter certifiable to have obtained A2P R3 certification issued by the CNPP which meets the most stringent insurance company requirements (test performed 15 minutes by an expert from the CNPP trying to make a hole big enough for a person to pass through).

Wind resistance due to our new guide rails, high security and anticyclonic with spurs anti tearing

Our roll down shutters CURVED and roller shutters XL equipped with metal tips were tested in cyclonic conditions have obtained a classification by the CETIM of 7 meters wide more.(see detail in annex).

Application fields

ALL SHOPS & RESIDENTIAL

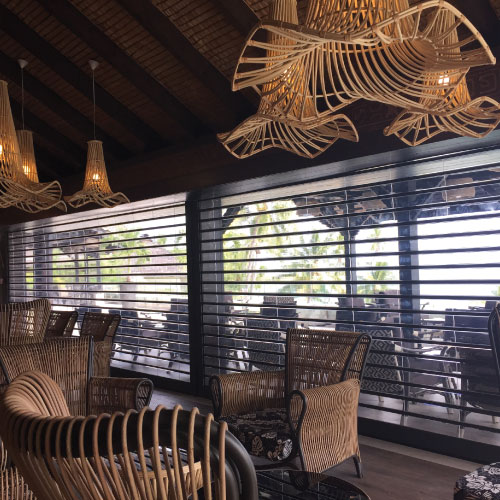

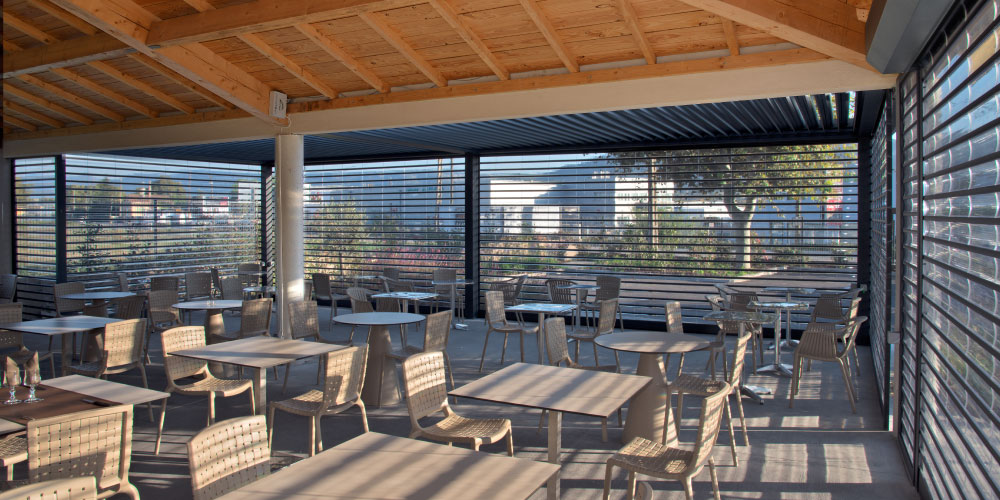

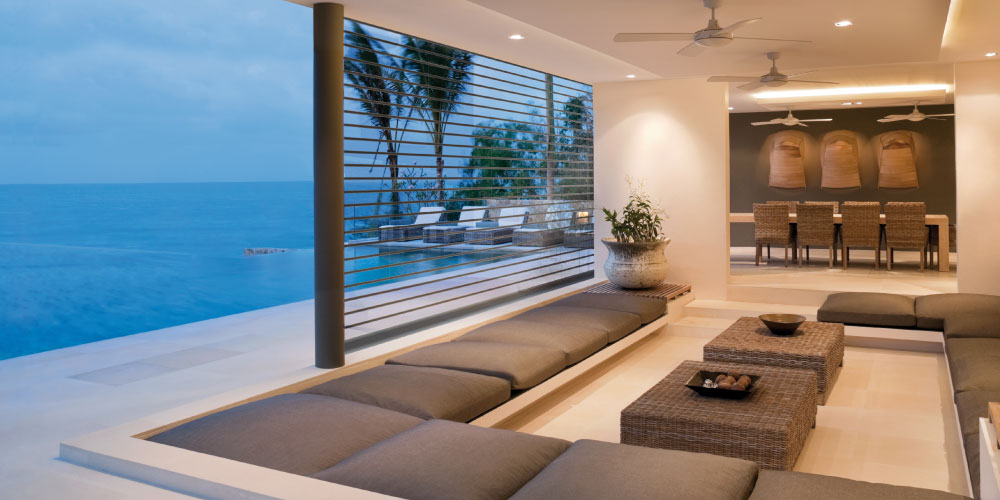

Restaurant terraces or breweries, bioclimatic pergolas, pool house, patio, greenhouse, covered terraces, verandas…

Crystal Vision CURVED® Components

Curved and transparent polycarbonate slats treated with UV protection in the mass

Possibility of coloring (smocked, blue, orange, green…) tinted in the mass while keeping the transparancy

Or opaque (piano black, opaline white) in order to obscure the light while proposing an exceptional design.

Width 450 mm
Height 103 mm

Visible slat height 87 mm
Thickness 4 mm

Biding profiles in high resistance extruded aluminium, possibility of lacquering (more than 200 colors) with satin, sand or frosted aspect

Equiped with PVC soundproofing joints for perfectly silent operation.

Height 24 mm
Width 17 mm

High Security and Anticyclonic guide rails in extruded aluminium for housing box

The only worldwide guide rail which proposes 4 brush joints (2 for guiding and 2 for waterproofing) and 2 anti tearing spurs to allow lateral locking when the biding profiles are equiped with metal or composite security tips.

Height 115 mm
Width 42,5 mm
Thickness 4,5 mm

Final slat in tubular extruded aluminium

Allowing the integration of an anti-skid reinforcement profile, blocked by the spurs inside the guide rails. A new joint perfectly adapted will strengthen the ground tightness.

Axis and Motorization

The use of a 133 axis provided with a wedging ring is essential to perfect the winding of the roll down shutter and to avoid the marking of the slats during operation.
It shall be equipped with an anti drop security device and a tubular motor with or without emergency control (SIMU T8SDMI), radio option with safety bar.

WINDING DIAMETER OF BOX TOTAL HEIGHT OF SHUTTERS
 250 mm  1500 mm
 300 mm  3000 mm
 360 mm  4000 mm

DIMENSIONS
Max width fo the shutter 6000 mm
Max height of the shutter 4000 mm
Weight of blinds 10 kg / m2

Standards

Wind resistance by the CETIM organism CET0130728 final 03b from the 2016/06/14 Class 5, 1800 Pa – Pressure breaking test 2475 Pa

Break-in resistance by the CNPP organism certificate 18.34.62 Technical advice MF090065A (test carried out by MG Fermetures et Créations on the Curved product)

Want to know more about our products? Get in touch with us Now
